Duplex Stainless Steel 2205/2507: The Ideal Choice for Marine & High-Chloride Environments

Introduction: Combating Extreme Corrosion Environments

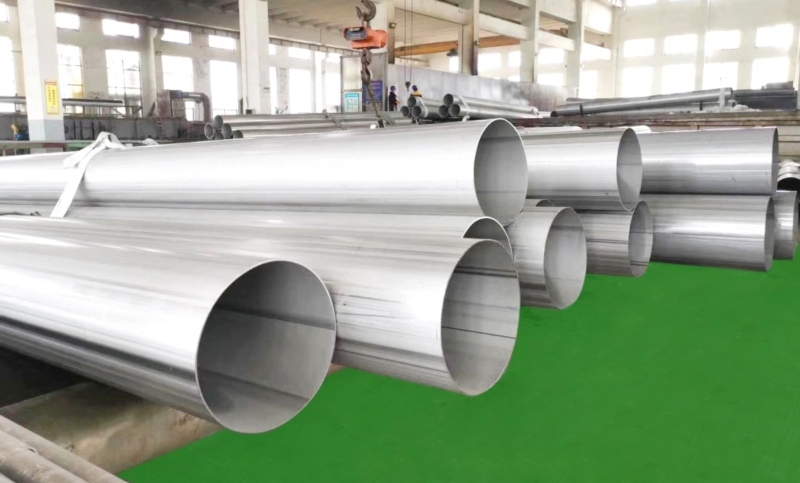

In seawater desalination, offshore oil & gas, chemical processing, and pulp bleaching — environments saturated with chloride ions — standard 304/316L stainless steels often fall short. Duplex stainless steel 2205 (S31803/S32205) and super duplex 2507 (S32750), with their unique ferrite + austenite dual-phase microstructure, deliver both high strength and exceptional corrosion resistance. Wenqiang Stainless Steel provides full-range 2205/2507 pipes and fittings.

Core Advantages of Duplex Stainless Steel
High Strength: 2205 yield strength is approximately 450 MPa — twice that of 304/316L. This means wall thickness can be reduced 30-40% at the same pressure rating, significantly reducing weight and material cost.
Pitting Resistance: 2205 PREN (Pitting Resistance Equivalent Number = %Cr + 3.3×%Mo + 16×%N) ≈ 35, far exceeding 316L's PREN ≈ 26. Pitting resistance improves 2-3× in chloride media. 2507's PREN 42 provides even superior performance.
Stress Corrosion Cracking (SCC) Resistance: The ferritic phase in duplex microstructure effectively arrests chloride SCC propagation that plagues austenitic stainless steels.

2205 vs. 2507 Selection
2205 (S31803): Yield ≥450 MPa, PREN ≈35. Applications: chemical processing, desalination, general offshore. Cost: moderate.
2507 (S32750): Yield ≥550 MPa, PREN 42. Applications: deep-sea oil & gas, FGD (flue gas desulfurization), concentrated chloride service. Cost: high.
Selection rule: Use 2205 for general high-chloride environments; upgrade to 2507 when chloride concentration exceeds 20,000 ppm or temperature exceeds 60°C in seawater service.


Frequently Asked Questions
Q1: What special considerations apply when welding duplex stainless steel?
A: Duplex welding requires controlled heat input (0.5-2.5 kJ/mm) and interpass temperature (≤150°C), using matching filler metals (ER2209/ER2594). Post-weld ferrite content must be maintained between 35-55% — too high or too low compromises corrosion resistance.
Q2: Can duplex stainless steel replace titanium?
A: In many applications, yes. Duplex stainless steel approaches titanium's seawater corrosion resistance at 1/3 to 1/5 the cost. However, titanium remains necessary for high-temperature (300°C) concentrated chloride environments.
Q3: What is the lead time for Wenqiang duplex products?
A: 2205 standard specifications: 15-25 days. 2507: 25-35 days due to longer raw material procurement cycles.

Contact Us
Wenqiang Stainless Steel duplex 2205/2507 series — reliable solutions for extreme corrosion environments. Technical consultation: +86 577 8922 2595.
