Stainless Steel Ball Valve Selection Guide: Types, Materials & Applications

Introduction: Ball Valves — The Most Widely Used Isolation Valves
Stainless steel ball valves offer rapid operation, reliable sealing, low flow resistance, and simple maintenance — making them the most widely used isolation valves across petrochemical, water treatment, food, and pharmaceutical industries. Wenqiang Stainless Steel supplies one-piece, two-piece, and three-piece ball valves from DN15 to DN300 in pressure classes PN16 to PN420.

Ball Valve Type Comparison
One-Piece Ball Valve: Integral cast body, compact structure. Cannot be serviced in-line. Suitable for small-bore, low-pressure applications.
Two-Piece Ball Valve: Two-body bolted construction. Can be disassembled for maintenance. Standard choice for general industrial piping.

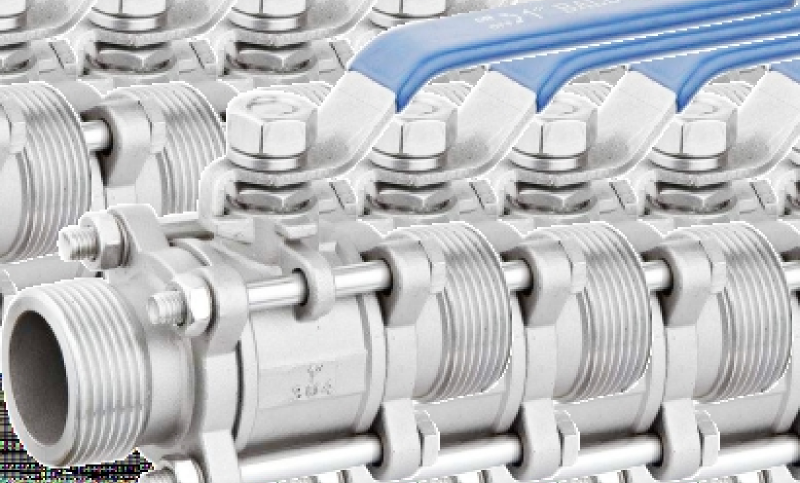

Three-Piece Ball Valve: Three-body bolted construction with removable center section. Easiest to maintain — ball and seats can be replaced without removing the valve from the pipeline.

Material Selection & Seal Types
Wenqiang ball valve bodies are primarily 304 and 316L stainless steel, with 2205 duplex and nickel alloys available for special service. Seal types include soft seal (PTFE/PPL/Nylon) for zero-leakage at temperatures ≤200°C, and metal-to-metal hard seal for service up to 550°C suitable for steam and high-temperature media.

Frequently Asked Questions
Q1: Ball valve vs. gate valve for isolation service?
A: Ball valves offer faster operation (90° quarter turn), lower flow resistance, and more compact size — preferred for most isolation applications. Gate valves are better for large-diameter piping and applications requiring full-bore passage (e.g., pigging).
Q2: Why are three-piece ball valves easier to maintain?
A: The center body section can be removed independently without disturbing the pipe connections, allowing ball and seat replacement in minutes without pipeline disassembly.
Q3: Does Wenqiang offer fire-safe ball valves?
A: Yes. Wenqiang's fire-safe ball valves are tested to API 607/API 6FA, providing metal-to-metal secondary sealing when soft seals are compromised by fire exposure.

Contact Us
Wenqiang Stainless Steel ball valves — smooth operation, reliable sealing. DN15-DN300 full range. Inquiries: +86 577 8922 2595.
