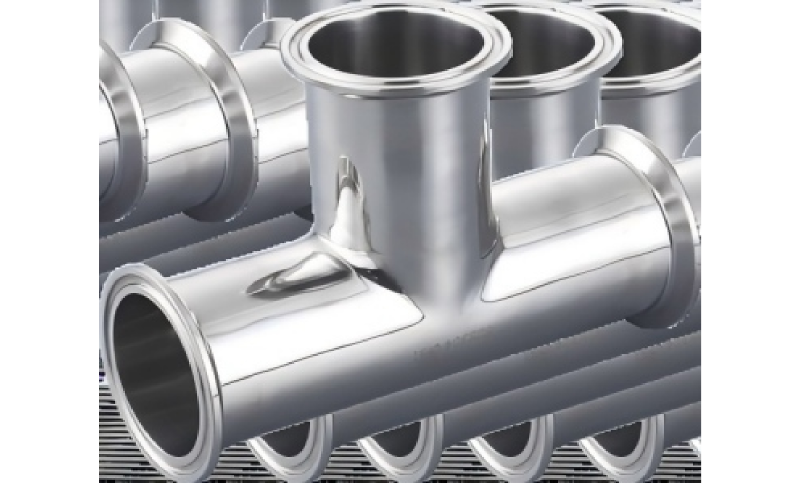

Stainless Steel Fitting Installation Standards & Common Error Troubleshooting Guide

Introduction: Installation Quality — The Final Line of Defense
Even with the highest quality stainless steel fittings, improper installation can lead to leaks, corrosion, or pipeline failure. Industry statistics indicate approximately 60% of pipe leakage incidents stem from installation errors rather than material quality issues. Based on over 20 years of engineering service experience, Wenqiang Stainless Steel presents core installation standards and common pitfalls for stainless steel pipe fittings.

Pre-Installation Preparation
1. Material Verification: PMI (Positive Material Identification) testing upon receipt to prevent 304/316L mix-ups.
2. Dimensional Check: Verify fitting diameter, wall thickness, and flange face type match design specifications.
3. Surface Inspection: Examine fittings for cracks, pitting, dents, and contamination.
4. Weld Prep: Butt-weld fitting bevels at 37.5° ±2.5° with root land 1.6 ±0.8mm.

Top Five Installation Errors
Error 1: Dissimilar Metal Direct Contact — SS flanges bolted directly to carbon steel pipe creates galvanic corrosion. Solution: Install insulating gaskets, sleeves, and washers.
Error 2: Non-Crossover Bolt Tightening Pattern — Causes uneven flange loading and gasket seal failure. Solution: Strict cross-pattern (star) sequence in 3-4 passes.
Error 3: No Back-Purge During Welding — Severe internal weld oxidation destroys corrosion resistance. Solution: Argon back-purge at 8-15 L/min before and during welding.
Error 4: Excessive Pipe Support Spacing — Causes pipe sagging and stress concentration. Solution: Support spacing per code (horizontal ≤20× pipe diameter).
Error 5: No Thermal Expansion Allowance — Temperature changes create overstress. Solution: Install expansion joints or natural compensation bends.

Frequently Asked Questions
Q1: Can stainless steel pipe connect directly to carbon steel pipe?
A: Not recommended. If connection is necessary, install an insulating flange kit (insulating gasket + insulating sleeves + insulating washers) between the dissimilar metals to prevent galvanic corrosion. Better solution: use a stainless-to-carbon-steel transition fitting.
Q2: What misalignment is permitted for butt-weld fittings?
A: Per GB/T 12459 and ASME B16.9, external wall misalignment shall not exceed 10% of wall thickness or 1.5mm (whichever is less). Excessive misalignment causes weld stress concentration and reduced fatigue life.
Q3: Does Wenqiang provide installation technical guidance?
A: Yes. Wenqiang provides complimentary installation guidance manuals and online technical consultation. For major projects, on-site technical engineering support and training can be arranged.
