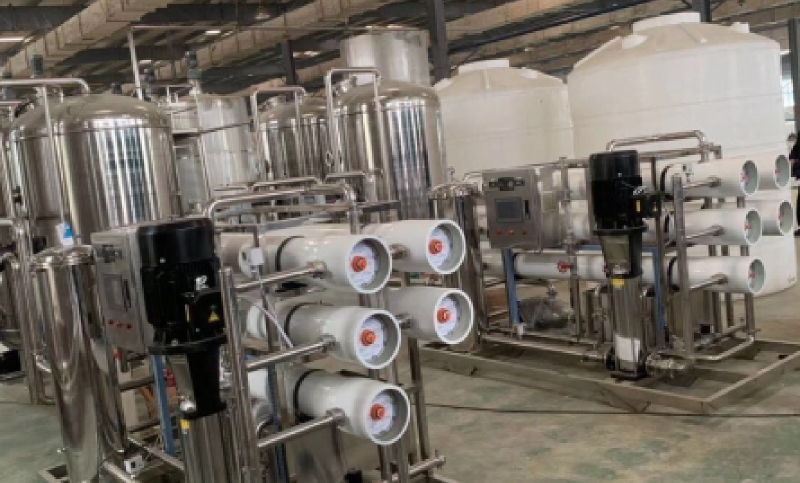

Stainless Steel Piping for Seawater Desalination: Material Selection from Intake to RO

Introduction: Piping Solutions Against Seawater Corrosion
Global water scarcity is driving rapid growth in seawater desalination. Seawater's high total dissolved solids (TDS ≈ 35,000 mg/L) and chloride ion concentration (≈19,000 mg/L) create severe challenges for piping materials — any material mismatch can result in catastrophic pitting and crevice corrosion. Wenqiang Stainless Steel has supplied premium piping materials for multiple desalination projects domestically and internationally.

Material Selection by Process Stage
Seawater Intake (raw seawater): 2507/Titanium — Maximum corrosion risk
Pretreatment (chlorinated seawater): 2205/2507 — Residual chlorine present
RO High-Pressure System (concentrated brine): 2507/6Mo — High pressure + elevated Cl⁻
Product Water (permeate): 304/316L — Low corrosivity
Brine Discharge (concentrated reject): 2507/C-276 — Extreme corrosion conditions

Why Duplex Steels Dominate Desalination
Duplex stainless steels 2205 and 2507 have become the standard materials for seawater-side piping in desalination plants because they combine: high chloride pitting resistance (PREN 35-42+), high mechanical strength (allowing thinner walls and weight savings), and excellent stress corrosion cracking resistance — all at significantly lower cost than titanium alternatives.

Frequently Asked Questions
Q1: Can 316L be used in desalination piping?
A: 316L is suitable only for product water (permeate) piping where corrosivity is low. For seawater-side and brine-side piping, 316L lacks adequate pitting resistance (PREN ≈26) and 2205 (PREN ≈35) or 2507 (PREN 42) must be used.
Q2: What is the service life of duplex steel in desalination?
A: With correct material selection and proper maintenance, 2507 piping achieves 25-30 year design life in seawater desalination. 2205 achieves approximately 20 years, depending on water temperature and chloride levels.
Q3: What products does Wenqiang supply for desalination projects?
A: Wenqiang provides 2205/2507 seamless pipes, welded pipes, fittings (elbows/tees/reducers), flanges, and valves — complete one-stop piping material packages.
