Large diameter seamless elbows represent a critical component in modern piping systems, engineered to facilitate directional changes in fluid flow while maintaining structural integrity under high-pressure conditions. These specialized fittings are manufactured without welded seams, ensuring uniform material properties throughout the entire component. The seamless construction eliminates potential weak points that could compromise system performance or safety. Large diameter seamless elbows typically range from 6 inches to 48 inches in diameter, accommodating substantial fluid volumes in industrial applications. The manufacturing process involves hot forming or cold forming techniques, where solid steel billets are shaped into elbow configurations through controlled heating and mechanical manipulation. This process ensures consistent wall thickness and eliminates the need for longitudinal welds that could create stress concentration points. The main functions of large diameter seamless elbows include redirecting fluid flow at various angles, typically 45 degrees, 90 degrees, or custom angles as required by specific applications. They maintain flow continuity while minimizing turbulence and pressure drops that could affect system efficiency. Technological features include precision-engineered radius ratios that optimize flow characteristics, corrosion-resistant surface treatments, and dimensional accuracy that ensures proper fit with connecting pipes. The seamless design provides superior resistance to internal pressure, external loads, and thermal cycling. Large diameter seamless elbows find extensive applications in power generation facilities, petrochemical plants, water treatment systems, oil and gas pipelines, and marine installations. They are essential components in steam distribution systems, cooling water circuits, and process piping where reliability and longevity are paramount. The absence of weld seams makes them particularly suitable for high-temperature applications and corrosive environments where traditional welded fittings might fail prematurely.

New Product Releases

VIEW DETAILS

Welded Flange With Neck

VIEW DETAILS

Flange Cover

VIEW DETAILS

Tube Sheet

VIEW DETAILS

Stainless Steel Seamless Pipes – Precision, Strength & Customization

Large diameter seamless elbows offer numerous practical benefits that make them superior to conventional welded alternatives in demanding industrial applications. The primary advantage lies in their enhanced structural integrity, as the seamless construction eliminates the inherent weakness associated with welded joints. This results in higher pressure ratings and improved safety margins, allowing engineers to design systems with greater confidence in component reliability. The uniform material properties throughout the elbow ensure consistent performance under varying operational conditions, reducing the likelihood of unexpected failures that could lead to costly downtime or safety incidents. Another significant advantage is the superior flow characteristics achieved through seamless construction. The smooth internal surface and consistent wall thickness minimize flow disruption, reducing pressure losses and improving overall system efficiency. This translates to lower operational costs through reduced pumping energy requirements and improved process performance. The elimination of weld beads on the internal surface prevents flow separation and turbulence that can cause erosion, cavitation, or unwanted pressure fluctuations. Large diameter seamless elbows also demonstrate exceptional corrosion resistance compared to welded alternatives. The absence of heat-affected zones, which are created during welding processes, eliminates areas of reduced corrosion resistance that typically occur near weld seams. This uniform corrosion resistance extends component service life and reduces maintenance requirements, providing long-term cost savings for facility operators. The seamless design also facilitates more effective application of protective coatings and linings, as there are no weld irregularities to compromise coating integrity. Manufacturing precision is another key advantage, as seamless elbows can be produced with tighter dimensional tolerances than welded fittings. This precision ensures proper fit-up with connecting piping, reducing installation time and minimizing the risk of alignment issues that could cause stress concentrations or leakage. The consistent wall thickness also allows for more accurate stress calculations during system design, enabling optimized material usage and cost-effective solutions. From a maintenance perspective, large diameter seamless elbows require less frequent inspection and replacement, as they are less susceptible to common failure modes such as weld cracking or preferential corrosion at weld interfaces. This reliability reduces lifecycle costs and improves plant availability, making them an economically attractive choice for critical applications where unplanned shutdowns must be minimized.

Latest News

Feb

Strongwin Stainless Steel Group Achieves ISO 90012015 Certification and AD 2000 Merkblatt Approval

Mar

Strongwin Stainless Steel Group Announces Major Production Capacity Expansion to Meet Growing Global Demand

Mar

Strongwin Stainless Steel Group Announces Strategic Partnership with Leading European Engineering Firm

Get a Free Quote

Our representative will contact you soon.

Mobile/WhatsApp

Name

Company Name

Message

0/1000

large diameter seamless elbow

wholesale seamless elbow

industrial pipe elbows

seamless elbow supplier

seamless elbow manufacturer

seamless elbow for sale

high quality seamless elbow

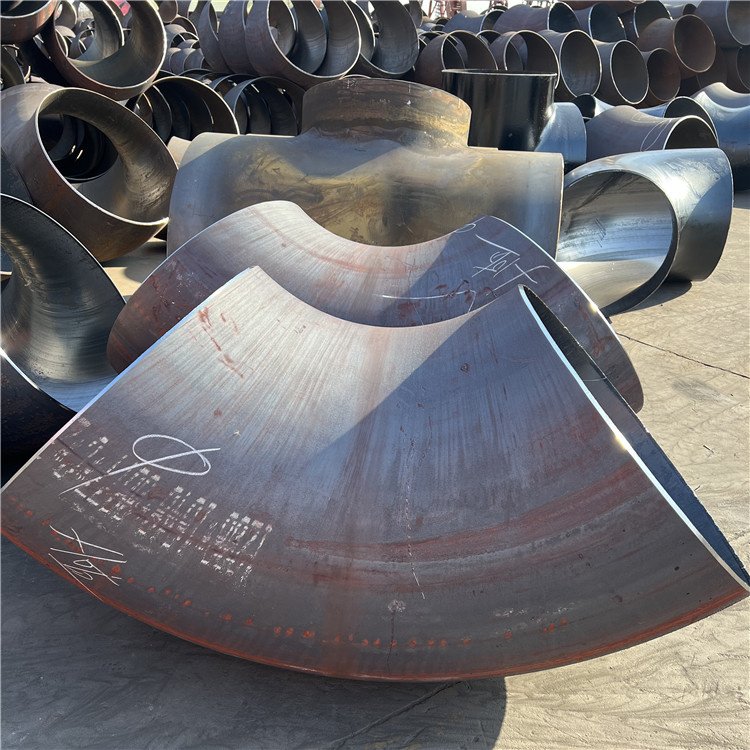

Uncompromising Structural Integrity Through Seamless Manufacturing

The seamless manufacturing process of large diameter seamless elbows represents a fundamental advancement in piping component technology, delivering unparalleled structural integrity that surpasses traditional welded alternatives. This manufacturing excellence begins with high-quality steel billets that undergo precisely controlled forming processes, eliminating the need for longitudinal welds that create inherent weakness points in conventional fittings. The seamless construction ensures uniform grain structure and material properties throughout the entire component, creating a homogeneous structure that responds predictably to operational stresses. This uniformity is particularly crucial in large diameter applications where the forces acting on the component are substantially higher due to increased surface areas and fluid volumes. The absence of weld seams eliminates stress concentration factors that typically occur at weld interfaces, where material properties can vary significantly from the base metal due to heat input during welding. These stress concentrations often become initiation points for fatigue cracks under cyclic loading conditions common in industrial piping systems. Large diameter seamless elbows distribute stresses more evenly across their structure, resulting in superior fatigue resistance and extended service life. The manufacturing process also ensures consistent wall thickness throughout the elbow, eliminating the thin spots or thick areas that can occur during welded construction. This consistency is critical for accurate stress analysis and pressure rating calculations, allowing engineers to optimize system designs with confidence in component performance. The seamless design also provides superior resistance to internal pressure, external loads, and thermal cycling, making these elbows ideal for high-pressure steam systems, hydraulic applications, and processes involving significant temperature variations. Quality control during seamless manufacturing can be more rigorous, as there are no welded joints requiring special inspection techniques or post-weld heat treatment processes that could introduce variability in material properties.

Enhanced Flow Efficiency and Hydraulic Performance

Large diameter seamless elbows deliver exceptional flow efficiency that directly impacts system performance and operational costs, making them the preferred choice for applications where hydraulic efficiency is paramount. The seamless construction creates an inherently smooth internal surface free from weld beads, backing strips, or joint irregularities that can disrupt fluid flow patterns. This smooth bore eliminates flow separation points where turbulence typically develops, reducing pressure losses and minimizing energy consumption in pumping systems. The consistent internal diameter maintained throughout the seamless elbow ensures optimal flow velocity distribution, preventing the acceleration and deceleration zones that occur when flow encounters sudden area changes at weld joints. This flow consistency is particularly important in large diameter applications where even small pressure losses can translate to significant energy costs over the system lifecycle. The precision manufacturing process allows for accurate control of the elbow radius, which can be optimized for specific flow conditions to minimize secondary flows and pressure drops. Computational fluid dynamics studies have demonstrated that seamless elbows can reduce pressure losses by up to 15 percent compared to welded alternatives in certain applications, translating to substantial energy savings in high-capacity systems. The smooth internal surface also reduces the tendency for particle deposition and fouling, maintaining flow capacity over extended periods and reducing maintenance requirements. In applications involving abrasive media, the seamless construction eliminates erosion initiation points that typically occur at weld irregularities, extending component life and maintaining hydraulic performance. The uniform wall thickness of large diameter seamless elbows also contributes to thermal efficiency in heat transfer applications, as heat transfer coefficients remain consistent around the elbow circumference. This thermal uniformity prevents hot spots or cold spots that could affect process performance or create thermal stresses. For systems handling viscous fluids or non-Newtonian materials, the smooth bore of seamless elbows reduces shear heating and maintains fluid properties, ensuring consistent process conditions downstream of the fitting.

Superior Corrosion Resistance and Longevity

The corrosion resistance characteristics of large diameter seamless elbows represent a significant technological advantage that extends far beyond simple material selection, encompassing fundamental metallurgical principles that enhance component longevity and system reliability. The seamless manufacturing process eliminates heat-affected zones that are inherently created during welding operations, where rapid heating and cooling cycles can alter the microstructure of the base material and create areas of increased corrosion susceptibility. These heat-affected zones typically exhibit different electrochemical properties compared to the parent material, creating galvanic couples that accelerate localized corrosion attack. In large diameter seamless elbows, the uniform microstructure throughout the component ensures consistent electrochemical behavior, eliminating preferential corrosion sites that commonly develop at weld interfaces. This uniformity is particularly beneficial in environments containing chlorides, acids, or other aggressive chemicals where even minor variations in material properties can lead to rapid localized attack. The seamless construction also facilitates more effective application of protective systems, whether metallic coatings, organic linings, or cathodic protection schemes. The absence of weld irregularities allows for uniform coating thickness and eliminates crevices where coating defects typically initiate. In marine environments or chemical processing applications, this coating integrity is crucial for long-term corrosion protection. The smooth external surface of seamless elbows also reduces external corrosion by eliminating moisture retention sites and facilitating drainage, particularly important in atmospheric service where wet-dry cycles can accelerate corrosion rates. From a metallurgical perspective, the controlled cooling during seamless manufacturing prevents the formation of brittle phases or segregated areas that can compromise corrosion resistance. This is especially important when processing corrosion-resistant alloys where welding can precipitate harmful phases that reduce corrosion performance. The uniform stress distribution in seamless elbows also reduces susceptibility to stress corrosion cracking, a failure mode that combines mechanical stress with corrosive environments and is often initiated at stress concentration points found in welded components. Regular inspection and maintenance intervals can be extended for seamless elbows due to their superior corrosion resistance, reducing lifecycle costs and improving plant availability in critical service applications.
