Stainless Steel Capillary Tubes: Critical Applications in Medical Devices & Precision Instruments

Introduction: Small Diameter, Major Impact

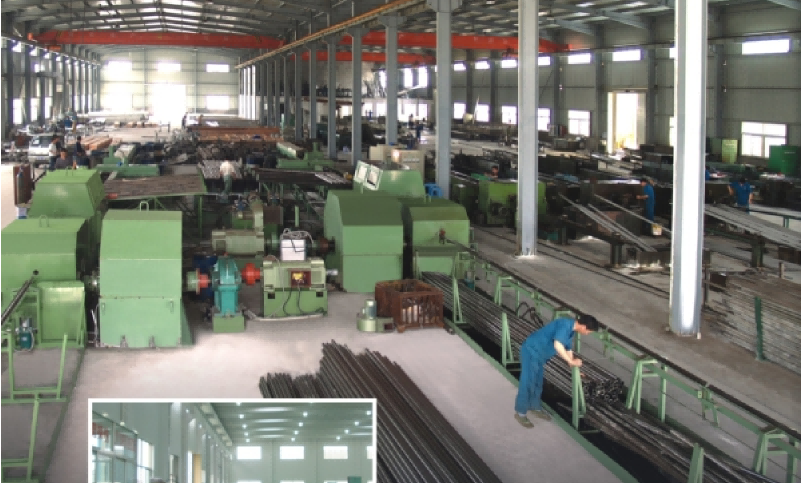

Stainless steel capillary tubes (OD 0.5mm-6mm, wall thickness 0.1mm-1mm) may be tiny in size, but they are indispensable components in medical devices, analytical instruments, and semiconductor manufacturing. From hypodermic needles to chromatography columns, from sensor housings to microfluidic chip connectors, capillary tube precision directly determines equipment performance and reliability. Wenqiang's precision capillary tube facility features multi-station precision drawing equipment capable of producing tubes with wall thickness tolerances of ±0.01mm.

Medical Applications
Hypodermic Needles: 304/316L capillary tubes are ground and sharpened for single-use syringes and puncture needles. Wenqiang's medical capillary tubes feature electropolished internal surfaces with Ra ≤ 0.2μm, reducing drug residue and thrombus adhesion.
Endoscope Channels: Ultra-fine capillary tubes (OD 0.8mm-2mm) serve as working channels for water and air delivery in endoscopes. Wenqiang supplies products with straightness ≤ 0.5mm/m.
Implant Components: Using biocompatible 316LVM (vacuum-melted) material, Wenqiang supplies capillary tubes for orthopedic and cardiovascular device manufacturers compliant with ASTM F138.

Analytical Instruments & Semiconductor Equipment
Gas chromatograph carrier gas lines, mass spectrometer ion guides, and semiconductor chemical delivery tubes all demand capillary tubes with extreme dimensional accuracy and surface cleanliness. Wenqiang's precision capillary tubes achieve OD tolerance of ±0.005mm with internal surfaces ultrasonically cleaned and vacuum-annealed to meet SEMI F57 cleanliness requirements.

Frequently Asked Questions
Q1: What is the minimum order quantity for capillary tubes?
A: Standard specifications (OD 1-3mm, 304/316L): MOQ 50 kg. Ultra-fine specifications (OD < 1mm): MOQ 10 kg. Wenqiang supports flexible ordering with multiple specifications in small batches.
Q2: Can Wenqiang provide custom-length capillary tubes?
A: Yes. Wenqiang offers cut-to-length service from 10mm to 6000mm, with cut ends deburred and chamfered for smooth assembly.
Q3: What certifications are needed for medical capillary tubes?
A: Medical-grade capillary tubes typically require Mill Test Certificates (EN 10204 3.1), biocompatibility test reports (ISO 10993), and material compliance with ASTM F138/F139. Wenqiang provides complete regulatory documentation packages.

Contact Us
Wenqiang Stainless Steel precision capillary tubes — micron-level accuracy, medical-grade quality. Technical consultation: +86 577 8922 2595.
