Dimensional Tolerances for Stainless Steel Pipe: OD, Wall Thickness, and Ovality per ASTM

Dimensional tolerances for stainless steel pipe come mainly from ASTM A999, the general requirements standard, working together with product specifications like ASTM A312: outside diameter, wall thickness, ovality, and length each get a permitted range, and for seamless and hot-finished pipe the wall can run as much as 12.5 percent under the nominal value. These allowances decide how pipe fits up for welding, what it weighs, and whether it holds its pressure rating. Zhejiang Wenqiang Stainless Steel Co., Ltd. checks every dimension in its in-house laboratory and records the results on the material test certificate.

Why Tolerances Exist
No process turns out perfectly uniform pipe, so the standards fix an acceptable band around each nominal dimension. Tolerances balance economical production against what downstream fabrication and service actually need. Too loose and pipe won't fit standard fittings or won't pass a pressure calculation; too tight and cost climbs for no real gain. ASTM tolerances are a long-settled consensus that lets pipe from different runs interchange without drama. Know them and you head off arguments at inspection and fit-up headaches on site.

Outside Diameter Tolerance
OD tolerance governs how the pipe mates with fittings, flanges, and other pipe. ASTM sets plus-and-minus deviations that change with size, smaller pipe held to tighter absolute values, larger pipe allowed proportionally more. The tolerance applies to the measured diameter and gets checked with calibrated gauges or micrometers at several points. Since welding-end pipe has to line up with mating components, OD control at the ends matters most, and some specifications call out end tolerances separately from the body.

Wall Thickness Tolerance
Wall thickness is often the tolerance that matters most, because it sets both weight and pressure capacity. For seamless and hot-finished pipe, ASTM allows the wall to sit as much as 12.5 percent below nominal at any point. That under-tolerance exists because seamless piercing and elongation simply can't hold a perfectly even wall. Designers plan for it: pressure-design calculations use the minimum wall, nominal minus the allowance, not the nominal thickness, so a pipe at the low end of tolerance still makes its rating.
Welded pipe usually runs closer, since it's formed from rolled plate or strip of controlled thickness. That gap between the two is worth weighing when you choose seamless versus welded product for a weight-sensitive or pressure-critical line.
Wall variation has a plus side that specifications also control. The classic seamless under-tolerance is 12.5 percent, but some product forms and welded grades carry a symmetric plus-and-minus band, and heavier-walled or specially ordered pipe can be held tighter by agreement. Knowing which rule governs a given order keeps a fabricator from over-designing to a worst case the mill will never ship.

Ovality and Roundness

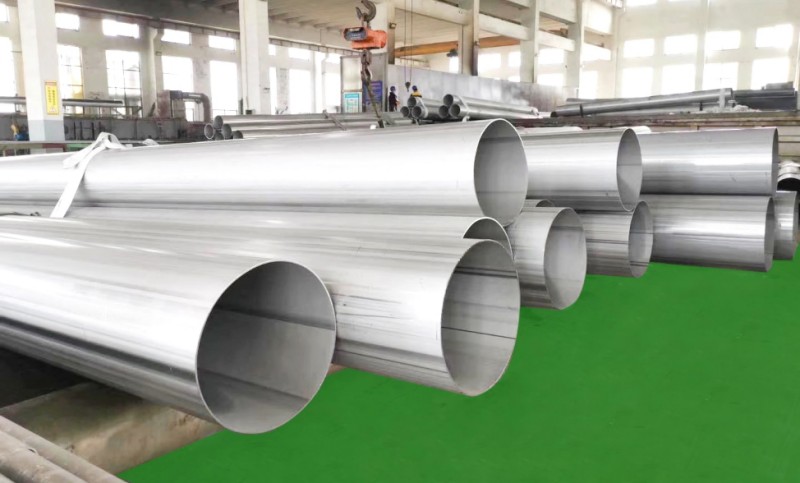

Ovality is the difference between the largest and smallest diameters at one cross-section; a pipe can hit its average OD and still be out of round. Standards generally require the actual diameter at any point to stay inside the OD tolerance, which reins in ovality indirectly. Too much ovality causes trouble at welded joints, where an out-of-round end won't line up cleanly with a round fitting, leaving high-low mismatch that weakens the weld and slows the fit-up. Thin-wall pipe goes out of round more easily and can also be checked for roundness after bending. Roundness gets measured with go/no-go ring gauges or by taking diameters across several axes.

Length and Straightness
Pipe ships in single random, double random, or cut lengths, each with its own tolerance. Random lengths cover a permitted range instead of a single value, which improves mill yield; cut lengths hold a tighter window when a project needs specific pieces. Straightness, though sometimes handled on its own, affects handling and automated welding, since bowed pipe fights alignment. Pick the right length category and you cut both wasted material from over-cutting and the number of field joints.

How Tolerances Affect Fit-Up and Weight
Two consequences dominate. First, fit-up: OD and ovality decide whether pipe ends align for welding. Mismatch past a few percent of wall thickness can mean grinding, back-welding, or rejection, so tight roundness at the ends saves fabrication time. Internal misalignment also disturbs flow and opens crevices where corrosion can start.
Second, weight and economics: with the wall running up to 12.5 percent under nominal on seamless pipe, delivered weight can land meaningfully below the calculated nominal weight. Anyone buying by theoretical weight should keep that in mind, and pressure designers should never assume nominal wall is present everywhere. Pipe near the high end of tolerance, on the other hand, weighs more and costs more to ship. Knowing where a lot falls within tolerance helps reconcile invoices and plan supports.

Verification at Wenqiang
Every pipe is measured against its specification before it leaves. Our laboratory uses calibrated micrometers, ultrasonic wall-thickness gauges, and ring gauges to check OD, wall, and ovality, and confirms length on measuring benches. Hydrostatic testing proves pressure integrity, and non-destructive examination screens for defects. Manufacturing follows ASTM A312 and A999 for austenitic pipe and A790 for duplex, with results logged on EN 10204 3.1 or 3.2 material test certificates under an ISO 9001 system.
That discipline means the numbers on the certificate match the pipe in the crate. When fabricators know the real OD, wall, and ovality, they can plan welds, calculate weights, and confirm pressure ratings without guesswork, which is how a set of ASTM tolerances turns into predictable performance on the job.

Frequently Asked Questions
Q: Why is seamless pipe allowed 12.5% under nominal wall?
A: The seamless piercing and elongation process cannot hold a perfectly even wall, so ASTM permits up to 12.5 percent under-tolerance; pressure design uses this minimum wall rather than the nominal value.
Q: How does ovality affect welding?
A: An out-of-round pipe end will not align cleanly with a round fitting, causing high-low mismatch that weakens the weld and requires extra grinding or fit-up work, so roundness at the ends is important.
