Seamless stainless steel pipe production for elevated-temperature service

Aug 30, 2026

Correct support spacing keeps a stainless steel piping system from sagging, vibrating, or wearing through, and the go-to references are MSS SP-58 and MSS SP-69, which define pipe hanger materials, design, and installation practice. One detail specific to stainless matters here: austenitic stainless steel has a modulus of elasticity about 10-15% lower than carbon steel, so an identical span deflects more, and spacing tables written for carbon steel are not conservative for stainless. Add thermal movement and the need to keep stainless away from carbon steel contact, and support design turns into real engineering. At Zhejiang Wenqiang Stainless Steel Co., Ltd. we tell customers to plan supports around stiffness, temperature, and galvanic isolation from the start.

Why stainless needs closer attention than carbon steel
Deflection under self-weight depends on span length, load, moment of inertia, and the material's modulus of elasticity. Austenitic stainless steels sit near 193-200 GPa, against roughly 205-210 GPa for carbon steel. Since deflection is inversely proportional to modulus, the same pipe on the same span sags noticeably more in stainless. Copy a carbon-steel spacing table straight across and the stainless line can blow past the usual deflection limit, which is commonly held to around 2.5 mm between supports to keep the drainage slope and avoid pooling.
Stainless is also often specified in thinner walls than carbon steel for the same pressure, because its strength and corrosion allowance work out differently. A thinner wall lowers the moment of inertia and adds to deflection. Lower modulus plus thinner wall means stainless spans should generally be shorter than the carbon-steel equivalent, or the pipe should be checked explicitly against a deflection and stress limit rather than a generic table.

Spacing guidance and how to use it
MSS SP-69 gives maximum support spacing for straight horizontal runs by nominal size and contents, separating water service from vapor or gas service because liquid-filled lines weigh more. Those values assume a uniformly distributed load and a combined bending-stress and deflection limit. For stainless, treat the published spacings as a starting point and verify deflection, or trim the spans a little to cover the lower modulus.

Nominal size Suggested support spacing, water service Suggested support spacing, vapor/gas service
DN25 (1 in) about 2.1 m (7 ft) about 2.7 m (9 ft)
DN50 (2 in) about 3.0 m (10 ft) about 4.0 m (13 ft)
DN100 (4 in) about 4.3 m (14 ft) about 5.2 m (17 ft)
DN150 (6 in) about 5.2 m (17 ft) about 6.4 m (21 ft)
DN200 (8 in) about 5.8 m (19 ft) about 7.3 m (24 ft)

These figures follow the MSS SP-69 pattern for standard-wall steel pipe; for thin-wall stainless, cut them back or confirm the 2.5 mm deflection criterion at operating temperature. Concentrated loads such as valves, flanges, and instrument stations need a support close to the load, not the straight-run table. Vertical risers need guides to control lateral movement and a load-bearing support near the base.

Managing thermal movement
Stainless steel expands more than carbon steel. Austenitic grades have a coefficient of thermal expansion around 16-18 micrometres per metre per degree C, roughly 40-50% higher than carbon steel near 12. A 30 m austenitic line heated by 200 C can grow on the order of 100 mm, so the support scheme has to let the pipe move while still carrying its weight. The usual approach fixes chosen points with anchors, lets the pipe slide axially through guides that restrain sideways motion, and absorbs the growth with expansion loops or flexibility in the routing.
Get the anchor-and-guide layout wrong and you dump large thermal loads into equipment nozzles, or buckle the line. Sliding supports want low-friction, corrosion-compatible bearing surfaces, and spring or constant-effort hangers go where vertical thermal movement would otherwise unload a rigid hanger.

Avoiding carbon-steel contact and crevices
A subtle but common cause of early failure is direct contact between stainless pipe and carbon-steel supports. Iron transferred from a carbon-steel clamp, U-bolt, or beam embeds in the stainless surface and rusts, and the contact point becomes a crevice where chlorides concentrate and pitting or crevice corrosion starts. The fix is to isolate the pipe from ferrous supports with stainless or non-metallic pads, elastomer or PTFE liners, or bonded protective wear pads, and to keep moisture from being trapped at the contact.
Vibration makes wear at supports worse. Where a line carries pumps or reciprocating equipment, or where flow-induced vibration is likely, tighter spacing raises the natural frequency and lowers resonance risk, and cushioned clamps limit fretting. Any hard point that lets the pipe rub metal-on-metal will thin the wall eventually, so protective liners do double duty against corrosion and abrasion.

Vibration, guides, and anchors in practice
Support spacing also sets the system's natural frequency. Longer spans deflect more and vibrate at lower frequencies, closer to the excitation from rotating machinery, so shortening spans is a direct way to detune a vibrating line. Guides stop lateral whipping, and anchors decide where thermal growth is absorbed. A coherent scheme reads as a chain of anchors, guides, and load supports laid out so every span meets its deflection limit, every load point is supported, and every thermal movement has a defined path.

Practical checklist
Design stainless supports to a deflection limit of about 2.5 mm instead of copying carbon-steel spans, and reduce spacing for thin-wall product. Put supports next to valves, flanges, and other concentrated loads. Provide anchors, guides, and flexibility for the higher thermal expansion of austenitic grades. Isolate the pipe from carbon-steel supports with non-metallic or stainless pads to keep out embedded iron, crevice corrosion, and fretting wear. Wenqiang supplies seamless and welded stainless pipe in the grades and wall thicknesses your support design calls for, with dimensional and material certification so the pipe matches the engineering assumptions behind the spacing.

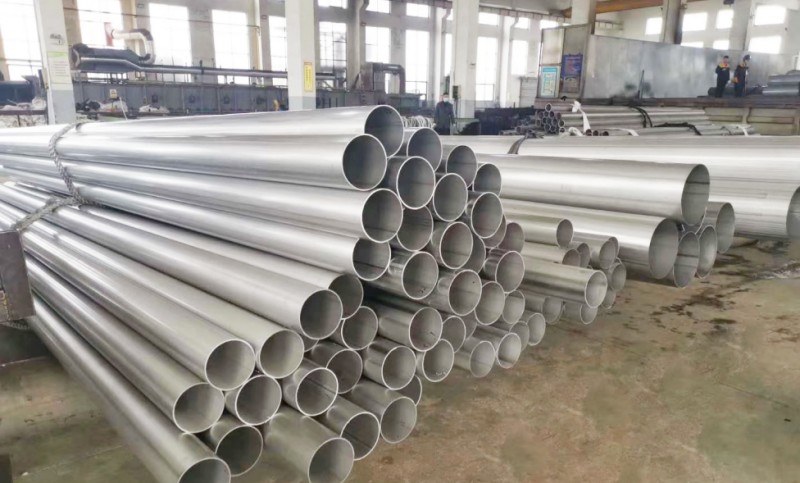

Seamless stainless steel pipe span between supports

Frequently Asked Questions
Q: Why do stainless steel pipes need closer support spacing than carbon steel?
A: Austenitic stainless steel has a modulus of elasticity about 10-15% lower than carbon steel and is often supplied in thinner walls, so the same span deflects more. Copying carbon-steel spacing tables can exceed the usual 2.5 mm deflection limit.
Q: How do you prevent corrosion at pipe supports?
A: Isolate the stainless pipe from carbon-steel clamps and beams using non-metallic or stainless wear pads or PTFE liners. This prevents embedded iron, eliminates the crevice where chlorides concentrate, and also reduces fretting wear from vibration.

For seamless and welded stainless pipe supplied to your support and deflection requirements, contact Zhejiang Wenqiang Stainless Steel Co., Ltd. at +86 577 8922 2595 / https://www.chinawqsteel.com/
