Long Radius Seamless Elbow

All Categories

A long radius seamless elbow represents a critical component in modern piping systems, designed to redirect fluid flow while maintaining optimal pressure and minimizing turbulence. Unlike standard elbows, the long radius seamless elbow features an extended curvature that spans 1.5 times the nominal pipe diameter, creating a smoother transition for flowing media. This geometric design significantly reduces pressure drop and flow resistance compared to short radius alternatives. The seamless construction eliminates welded joints, ensuring superior structural integrity and resistance to stress concentration points that commonly fail under high pressure or temperature conditions. Manufacturing involves advanced hot forming or cold bending processes using premium grade materials such as carbon steel, stainless steel, or specialized alloys. The long radius seamless elbow maintains consistent wall thickness throughout its curved profile, preventing weak spots that could compromise system reliability. These components typically conform to international standards including ASME B16.9, ASTM specifications, and API requirements, ensuring compatibility across diverse industrial applications. The extended radius design facilitates easier pipeline cleaning and maintenance operations while reducing erosion caused by high velocity fluids or abrasive particles. Installation flexibility allows for various connection methods including butt welding, socket welding, or flanged configurations. Temperature ratings vary depending on material selection, with options suitable for cryogenic applications to high temperature steam systems exceeding 1000 degrees Fahrenheit. Pressure capabilities range from standard residential applications to heavy industrial systems operating at thousands of PSI. Quality control measures during manufacturing include non-destructive testing, dimensional verification, and material certification to guarantee performance standards. The long radius seamless elbow serves as an essential component for optimizing flow characteristics while ensuring long-term operational reliability in demanding industrial environments.

New Product Recommendations

VIEW DETAILS

Soft Joint Flange

VIEW DETAILS

Large Diameter Flange

VIEW DETAILS

Tube Sheet

VIEW DETAILS

Stainless Steel Welded Pipes – Cost-Effective, Reliable, and Customizable

The long radius seamless elbow delivers exceptional performance benefits that directly translate to operational cost savings and enhanced system reliability for industrial facilities. The extended radius design creates significantly lower pressure drops compared to conventional short radius fittings, reducing energy consumption in pumping systems by up to 15 percent. This energy efficiency improvement results in substantial cost savings over the component's operational lifetime, particularly in continuous process applications. The seamless construction eliminates potential leak points that exist in welded assemblies, providing superior containment for hazardous or valuable process fluids. This enhanced sealing capability reduces maintenance requirements and minimizes environmental compliance risks. The smooth internal surface finish created during seamless manufacturing prevents particle accumulation and bacterial growth, making these elbows ideal for pharmaceutical, food processing, and clean room applications where contamination control is paramount. Installation becomes faster and more reliable since the seamless design requires fewer welding operations compared to multi-piece assemblies. Reduced welding translates to lower labor costs and decreased risk of installation defects that could compromise system integrity. The uniform wall thickness distribution throughout the curved section provides consistent stress resistance, eliminating weak spots that commonly develop in fabricated alternatives. This structural advantage extends service life significantly, reducing replacement frequency and associated downtime costs. The long radius seamless elbow maintains superior flow characteristics even with viscous fluids or slurries, preventing clogging issues that plague tighter radius fittings. Material flexibility allows selection of specialized alloys for corrosive environments, extreme temperatures, or high pressure applications where standard materials would fail prematurely. Quality assurance through controlled manufacturing processes ensures dimensional accuracy and material properties meet specified requirements consistently. The smooth flow transition reduces noise and vibration in piping systems, improving workplace conditions and reducing stress on connected equipment. Maintenance access improves due to the gradual curvature, allowing easier inspection and cleaning procedures. These combined advantages make the long radius seamless elbow a cost-effective solution that delivers reliable performance while minimizing total ownership costs across diverse industrial applications.

Tips And Tricks

Feb

Strongwin Stainless Steel Group Achieves ISO 90012015 Certification and AD 2000 Merkblatt Approval

Mar

Strongwin Stainless Steel Group Announces Major Production Capacity Expansion to Meet Growing Global Demand

Mar

Strongwin Stainless Steel Group Announces Strategic Partnership with Leading European Engineering Firm

Get a Free Quote

Our representative will contact you soon.

Mobile/WhatsApp

Name

Company Name

Message

0/1000

long radius seamless elbow

wholesale seamless elbow

seamless elbow price

industrial pipe elbows

seamless elbow for sale

high quality seamless elbow

seamless tube elbows

Superior Flow Dynamics and Energy Efficiency

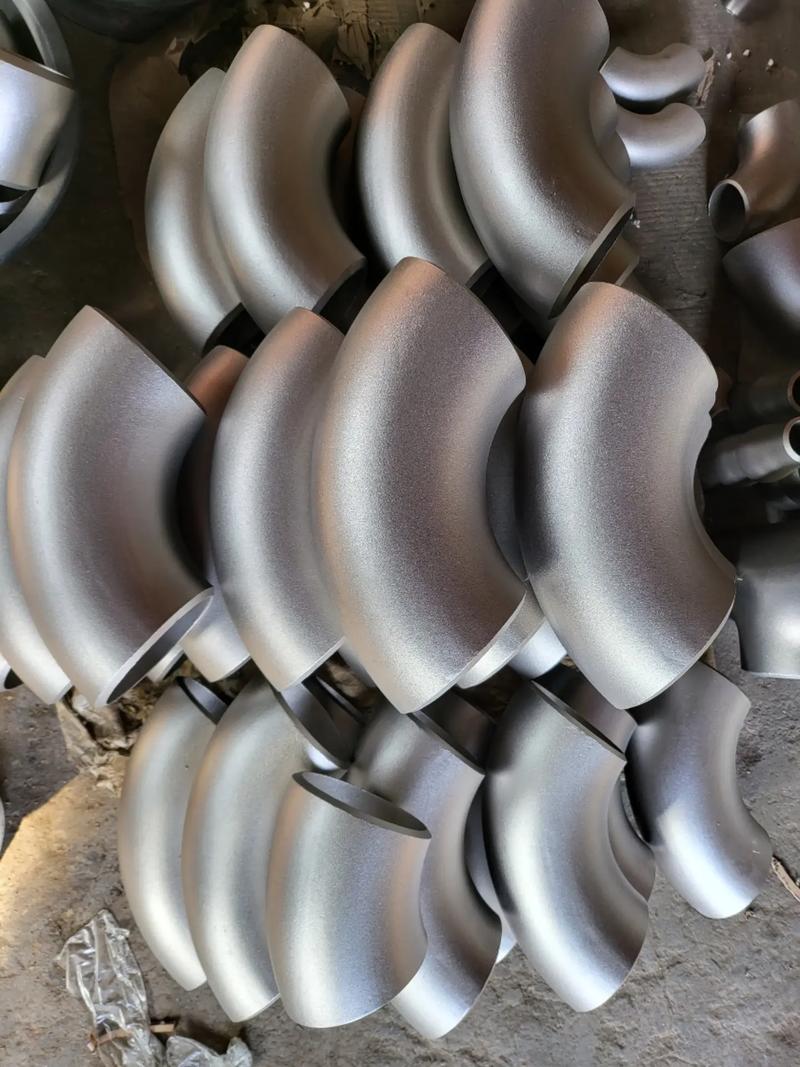

The long radius seamless elbow revolutionizes fluid handling systems through its engineered curvature that dramatically improves flow dynamics and energy efficiency. The extended radius design, measuring 1.5 times the nominal pipe diameter, creates a gradual directional change that maintains laminar flow characteristics and minimizes turbulence generation. This smooth flow transition reduces pressure losses by up to 40 percent compared to standard short radius alternatives, directly translating to lower pumping energy requirements and operational costs. In large industrial facilities processing thousands of gallons per minute, this efficiency improvement can save tens of thousands of dollars annually in electricity costs alone. The aerodynamic internal profile prevents flow separation and eliminates dead zones where particles could accumulate or bacteria could proliferate. This characteristic proves invaluable in food processing, pharmaceutical manufacturing, and chemical processing applications where product purity and contamination prevention are critical. The reduced turbulence also minimizes erosion damage caused by high velocity fluids carrying abrasive particles, significantly extending service life in challenging applications such as slurry transport or sand-laden fluid handling. Engineers specify long radius seamless elbows specifically to optimize system performance while reducing lifecycle costs. The smooth flow characteristics enable accurate flow measurement downstream, improving process control and product quality consistency. Additionally, the reduced pressure drop allows for smaller pump specifications or enables increased flow rates through existing systems without equipment upgrades. The energy savings achieved through superior flow dynamics contribute to sustainability goals while improving operational profitability. These performance benefits make the long radius seamless elbow an essential component for maximizing system efficiency in modern industrial applications where energy costs and environmental considerations drive design decisions.

Uncompromised Structural Integrity and Reliability

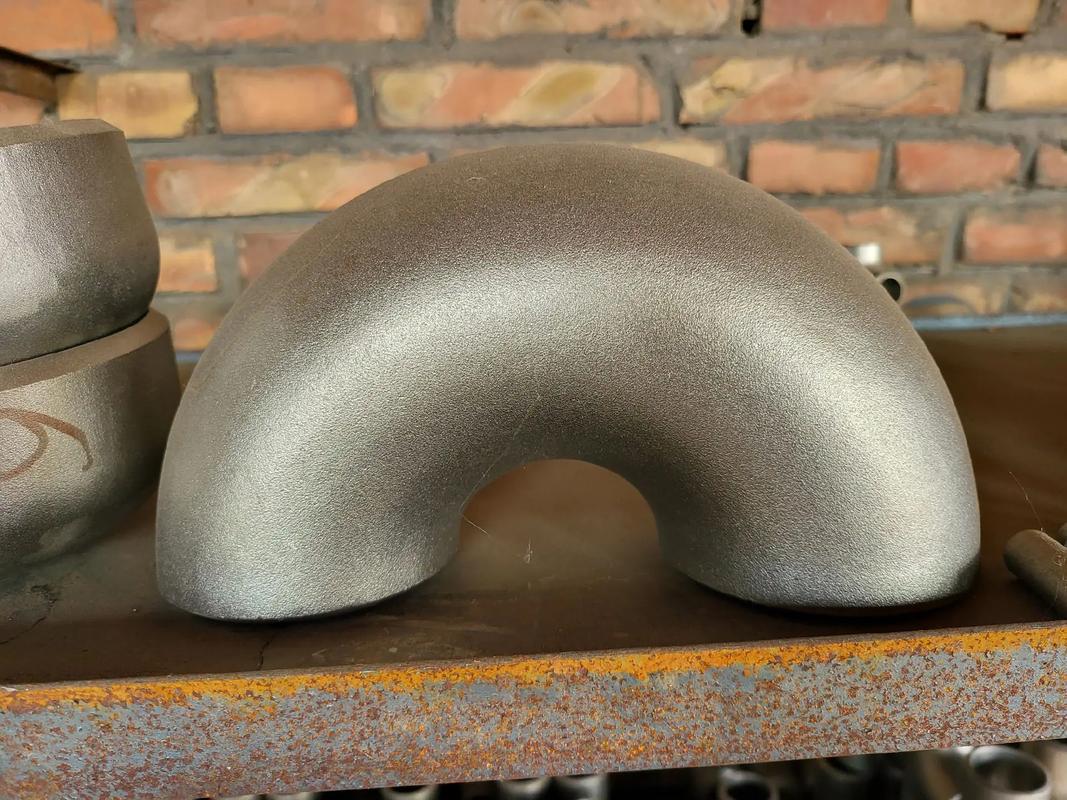

The seamless construction methodology of the long radius seamless elbow delivers unparalleled structural integrity that surpasses traditional welded or fabricated alternatives in demanding industrial environments. Manufacturing through advanced hot forming or precision cold bending processes creates a monolithic structure without joints, welds, or mechanical connections that represent potential failure points under extreme operating conditions. This seamless design eliminates stress concentration zones that commonly develop at weld interfaces, particularly under cyclic loading, thermal expansion, or high pressure conditions. The uniform grain structure maintained throughout the forming process ensures consistent mechanical properties across the entire component, preventing localized weakening that could lead to premature failure. Quality control during manufacturing includes comprehensive non-destructive testing such as ultrasonic inspection, radiographic examination, and pressure testing to verify structural soundness. The continuous wall thickness distribution provides superior resistance to internal pressure, external loads, and thermal stresses that would challenge segmented assemblies. This robust construction enables operation at higher pressure ratings and temperature extremes compared to welded alternatives. In critical applications such as nuclear power generation, offshore oil platforms, or high pressure chemical processing, the enhanced reliability of seamless construction reduces catastrophic failure risks and associated safety hazards. The absence of welded joints eliminates concerns about weld quality variations, heat affected zone brittleness, or incomplete penetration defects that could compromise system integrity. Maintenance intervals extend significantly due to the superior fatigue resistance inherent in seamless construction, reducing operational disruptions and replacement costs. The monolithic structure also provides better resistance to corrosion propagation since there are no crevices or heat affected zones where preferential attack could initiate. These reliability advantages make the long radius seamless elbow the preferred choice for mission-critical applications where failure consequences include safety risks, environmental damage, or substantial economic losses.

Versatile Material Options and Application Flexibility

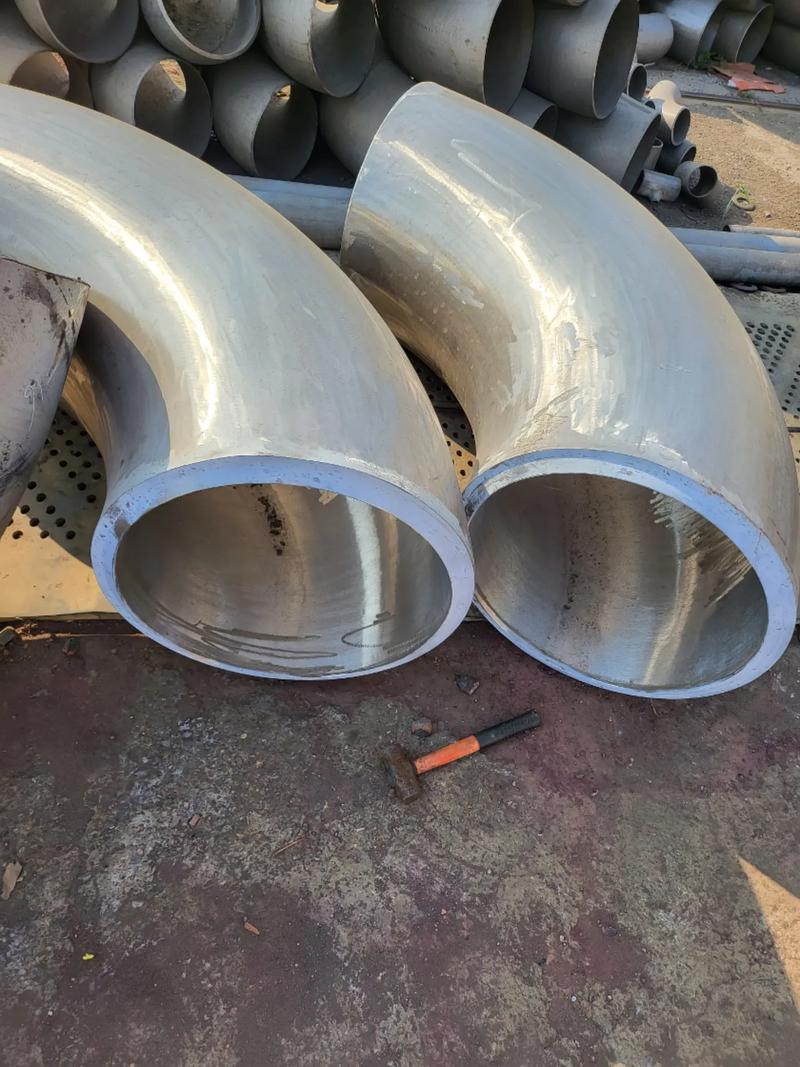

The long radius seamless elbow offers exceptional versatility through comprehensive material options and design flexibility that accommodate diverse industrial requirements across multiple sectors. Manufacturing capabilities encompass a broad spectrum of materials including carbon steel grades for general service, stainless steel alloys for corrosive environments, and specialized materials such as Inconel, Hastelloy, or titanium for extreme conditions. This material flexibility enables engineers to specify the optimal combination of corrosion resistance, temperature capability, and mechanical properties for specific applications. Carbon steel variants provide cost-effective solutions for standard industrial processes while maintaining adequate strength and durability. Stainless steel options, including 304, 316, and duplex grades, offer superior corrosion resistance for chemical processing, food and beverage production, and pharmaceutical manufacturing where product contamination prevention is essential. High-performance alloys enable operation in aggressive environments including sour gas service, high temperature steam systems, or concentrated acid applications where conventional materials would fail rapidly. The seamless manufacturing process accommodates various wall thickness specifications to meet different pressure ratings and structural requirements. Size availability ranges from small bore applications in instrumentation systems to large diameter installations in major process pipelines. Connection options include butt weld, socket weld, and flanged configurations to match existing piping systems and installation preferences. Custom radius specifications beyond standard 1.5D options provide solutions for space-constrained installations or specific flow optimization requirements. Surface finish options range from standard mill finish to electropolished surfaces for sanitary applications requiring smooth, cleanable surfaces. The manufacturing flexibility extends to special coatings, linings, or cladding options for enhanced performance in specific service conditions. Testing and certification capabilities ensure compliance with international standards including ASME, ASTM, API, and industry-specific requirements such as 3A Sanitary Standards or NACE specifications. This comprehensive versatility makes the long radius seamless elbow suitable for applications spanning oil and gas production, chemical processing, power generation, water treatment, food processing, and countless other industrial sectors where reliable fluid handling is essential.
